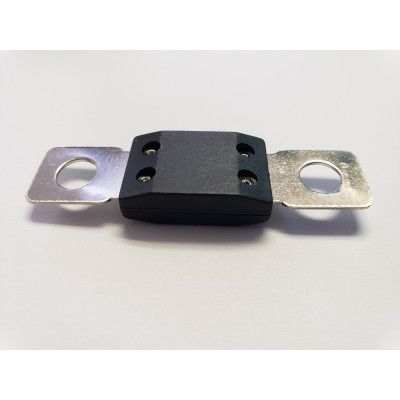

Victron Energy MEGA Fuses
$14.99
In stock
SKU
VE_Mega_Fuse
Victron Energy's high quality, marine-grade MEGA fuses provide circuit protection for higher amperage applications in 12 or 24VDC nominal system applications.
Victron Energy's high quality, marine-grade MEGA fuses provide circuit protection for higher amperage applications in 12 or 24VDC nominal system applications.
| MEGA Fuses 32V | Appr. Voltage Drop | Cold Resistance |
| 60A | 120 mV | 1.5 mΩ |
| 80A | 90 mV | 0.7 mΩ |
| 100A | 90 mV | 0.6 mΩ |
| 125A | 90 mV | 0.4 mΩ |
| 150A | 90 mV | 0.35 mΩ |
| 175A | 90 mV | 0.3 mΩ |
| 200A | 80 mV | 0.25 mΩ |
| 225A | 80 mV | 0.22 mΩ |
| 250A | 80mV | 0.2 mΩ |
| 300A | 80 mV | 0.17 mΩ |
| 400A | 70 mV | 0.13 mΩ |
| 500A | 70 mV | 0.1 mΩ |
| Manufacturer | Not Set |
|---|
