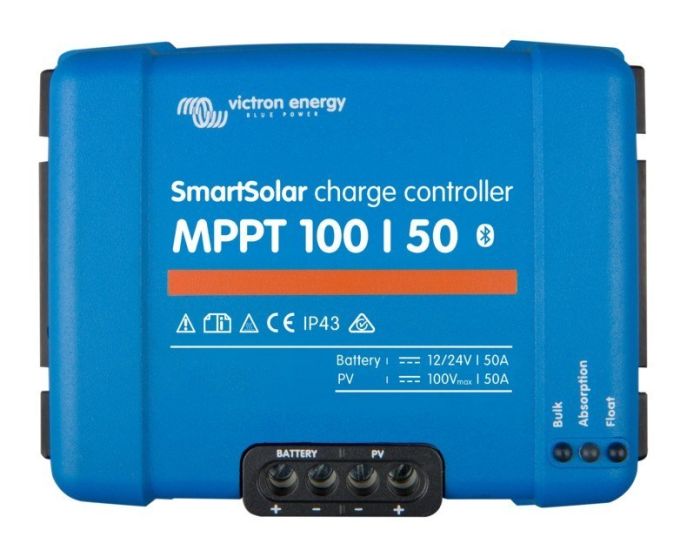

Victron SmartSolar MPPT 100/50 Charge Controller With Bluetooth

$184.85
In stock
SKU
VE-MPPTS-100-50

Victron has been building power systems for over 38 years, and has a worldwide reputation for innovation, reliability, and quality. They serve the marine, vehicle, and off-grid markets, and are based in the Netherlands. We’re hard-pressed to find anyone that matches Victron for quality.



The Victron SmartSolar MPPT 100/50 updates the BlueSolar MPPT 100/50 with built-in Bluetooth connectivity. This has two advantages:
• Saves space and cost over a separate Bluetooth dongle
• Allows Bluetooth access when the VE.Direct port is used to connect to a Color Control GX



The Smartsolar 100/50 is a great choice for controlling up to 700 watts of solar panels at 12 volts or 1400 watts at 24 volts. With maximum open circuit voltage of 100 volts. It automatically selects between 12 and 24 volts on the output. Should the PV input exceed the rating, the controller will simply limit the the throughput to the rated level.



Besides great build quality and a 5-year warranty, the Smart Solar has a number of unique features:



The Victron SmartSolar MPPT 100/50 can be connected right out of the box, and a rotary switch lets you choose between 8 preset battery type profiles. More extensive configuration and monitoring is possible via the free app on your smartphone or tablet. Being able to access 30 days’ worth of history, including daily yield and the amount of time spent it each stage, can be valuable for managing your energy collection and use.



The controller can also connect to:



•  The Victron Color Control GX Panel, which can also connect to Victron battery chargers, inverters, and battery monitors.

•  The MPPT Control remote, a dedicated monitor/control for all current Victron MPPT controllers with a VE.Direct port.

•  The VE.Direct to USB Adapter, which can connect Victron MPPT controllers with VE.Direct ports to a Windows PC



Outstanding maximum efficiency exceeds 98%, with no cooling fan needed. Full output current up to 40°C (104°F). Internal temperature sensor compensates absorption and float charge voltages for temperature. Electronic components are resin encapsulated to protect against the elements.



For more information, see the Victron SmartSolar User’s Manual, Data Sheet, or MPPT Overview.



SmartSolar Charge Controller MPPT 100/50
Battery Voltage 12/24V Auto Select
Rated Charge Current 50A
Maximum PV Power, 12V 700W
Maximum PV Power, 24V 1400W
Max. PV Short Circuit Current 60A
Maximum PV Open Circuit Voltage 100V
Maximum Efficiency 98%
Self-Consumption 10 mA
Charge Voltage ‘Absorption’ Default setting: 14.4V / 28.8V
(adjustable)
Charge Voltage ‘Float’ Default setting: 13.8V / 27.6V
(adjustable)
Charge Algorithm Multi-stage adaptive
Temperature Compensation -16 mV / -32 mV / °C
Protection Battery reverse polarity (fuse, not user accessible)
PV reverse polarity
Output short circuit
Over temperature
Operating Temperature -30 to +60°C (full rated output up to 40°C)
Humidity 95%, non-condensing
Data Communication Port VE.Direct or Bluetooth
ENCLOSURE
Color Blue (RAL 5012)
Power Terminals 13 mm² / AWG6
Protection Category IP43 (electronic components), IP22 (connection area)
Weight 1.3 kg (2.86 lb)
Dimensions (H x W x D) 130 x 186 x 70 mm
STANDARDS
Safety EN/IEC 62109-1
